NEW!
(
Now Shipping)

$40 (includes Shipping US)
Press to Purchase


Building your Zenith CH701
Slats, Flaps & Struts

A step by step video guide for builders of the popular Zenith CH701 aircraft kit.

Return to Build Videos

 This double set (2 DVDs) is a single volume in a series of videos being developed to cover the entire build process for the CH701 kit. Slats, Flaps & Struts is meant to follow the building progress where the Wings volume left off. You need to have completed the construction demonstrated in this previous volume for a seamless building strategy.

Note: This production is not associated or endorsed by Zenith Aircraft. It does not replace or supersede the documentation provided with the kit.  It is meant to be an aid in building the aircraft and its methods are presented only as a suggestion to builders.

This affordable double DVD video is approximately 3 hours in length .  The $40 price includes handling and first class postage US. (International orders welcome)

$40.00  Includes First class shipping US

You can use your credit card by pressing the ADD to CART button below (uses secure encrypted connection)

 OR you can send a check for $40 to:

HomebuiltHELP
Box 111
Brussels, WI 54204

We ship same day we receive your check!

OR

If you want to pay by credit card but not online, then email us at support@HomebuiltHelp.com with your phone number and best time to call and we can complete the transaction on the phone





              Slat rib installation                                           Strapping the slats


                   Wing stand                                              Preparing for struts


               Drilling wing mount                                           Wing rigging instructions


Flaperon skeleton installed in skin



Rib horn alignment



Strapping the flaperon skin



Flaperon installation



Plotting the flap attach cutout

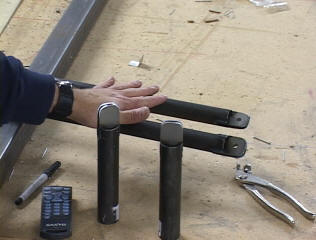

Wing strut components



Strut assembly



Jury strut fabrication



Slat jig construction



Building the slats


Slat alignment tool


Trailing edge solid rivets
